Thermal Cut-offs

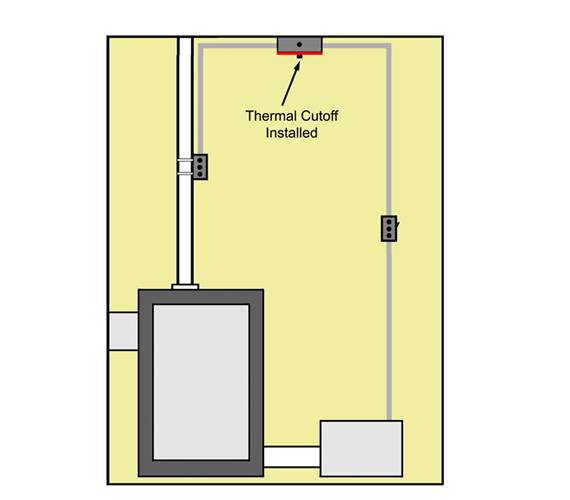

Inner-Tite Thermal Cut-offs are designed to disconnect power to heating systems when room temperature exceeds 165˚F (or 200˚F when optional 200˚F fuse is ordered). Cutting power to the heating system is a prudent way to aid in the protection of the heating system from further damage due to elevated room temperatures often caused by fires. Required by law in some states, Inner-Tite Thermal Cut-offs are economical, easy to install, and an effective back-up to existing built-in heating system controls.

  • Easy to Install
  • Available with 165˚F or 200 F˚ Fuse
  • 120V - 15AMP
  • For Residential and Commercial
  • Can be Wired into Audible Alarms
  • Inner-Tite Thermal Cut-offs are UL Listed. UL

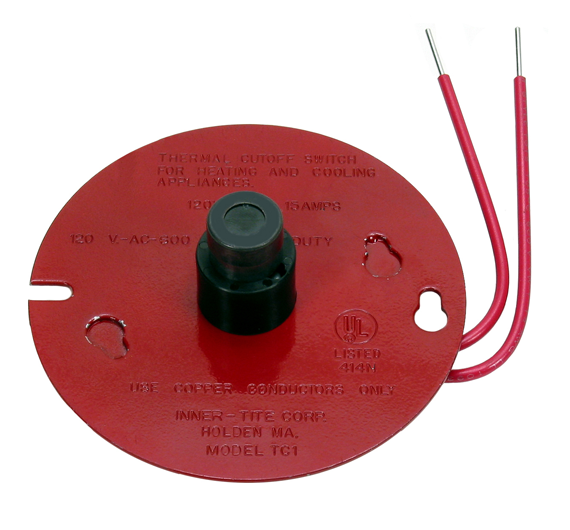

Round Thermal
Cut-offs

Part Number 95010

TC-1 Round Thermal Cut-off
  • 165 Degree Fahrenheit Fuse
  • Fits 3-1/4" and 4" Round Junction Boxes

Part Number 9600TC

TC-1 Round Thermal Cut-off
  • 200 Degree Fahrenheit Fuse
  • Fits 3-1/4" and 4" Round Junction Boxes

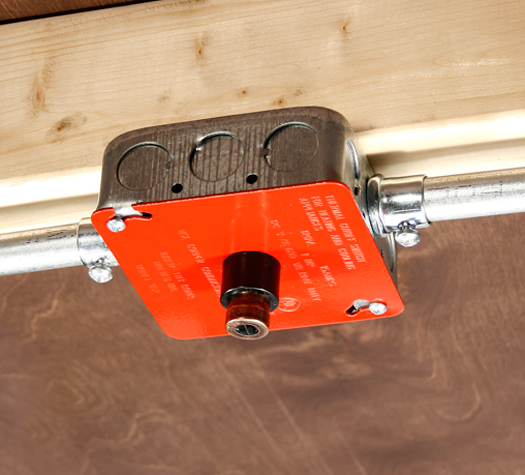

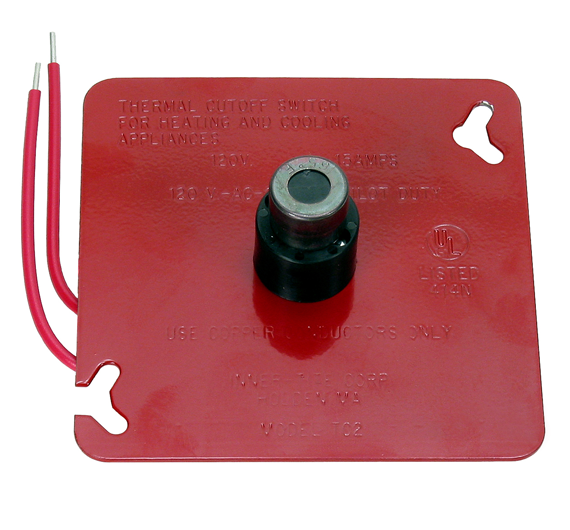

Square Thermal
Cut-offs

Part Number 95010A

TC-2 Square Thermal Cut-off
  • 165 Degree Fahrenheit Fuse
  • Fits 3-1/4" and 4" Round Junction Boxes

Part Number 96001

TC-2 Square Thermal Cut-off
  • 200 Degree Fahrenheit Fuse
  • Fits 3-1/4" and 4" Round Junction Boxes

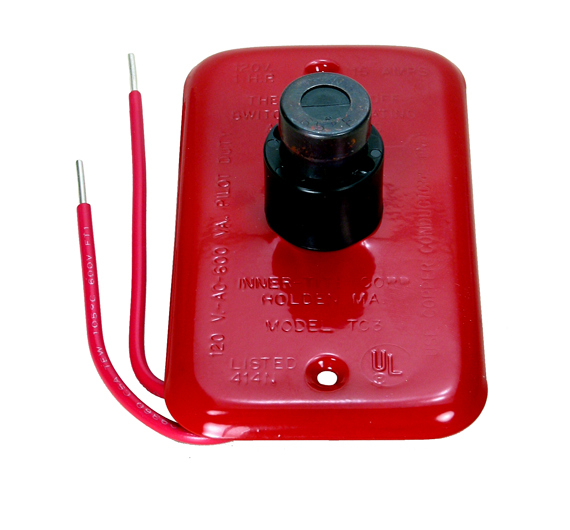

Handy Box Thermal Cut-offs

Part Number 95010D

Handy Box Thermal Cut-off
  • 165 Degree Fahrenheit Fuse
  • Fits Standard Size Handy Boxes

Part Number 9602TC

Handy Box Thermal Cut-off
  • 200 Degree Fahrenheit Fuse
  • Fits Standard Size Handy Boxes
