B100 Fusible Angle Valves

Inner-Tite Fusible Angle Valves have been trusted by Heating Professionals for decades.

Inner-Tite Fusible Angle Valves are engineered to stop the flow of fuels in the event that the room temperature exceeds 165˚F. Inner-Tite Fusible Oil Valves are UL Listed for the United States and Canada and meet NFPA Standard 31. Inner-Tite Oil Valves are manufactured to precise standards using only the finest materials. All design, assembly and quality control is conducted in our factory in Holden, Massachusetts.

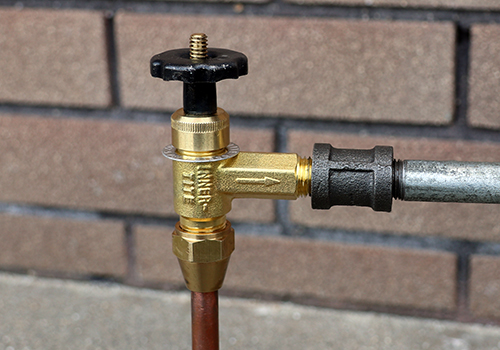

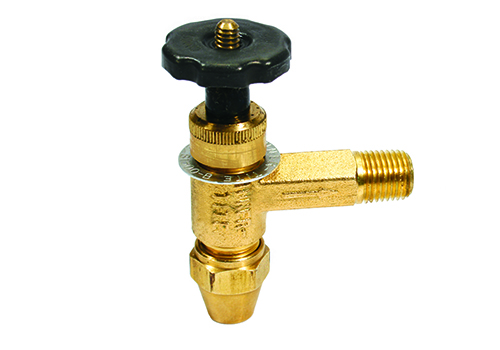

R81300 Fusible Angle Valve

  • B104CF Fusible Angle Valve
  • 3/8" O.D. Flare x 1/4" MPT
  • 1 1/2" Long
  • Construction: Brass

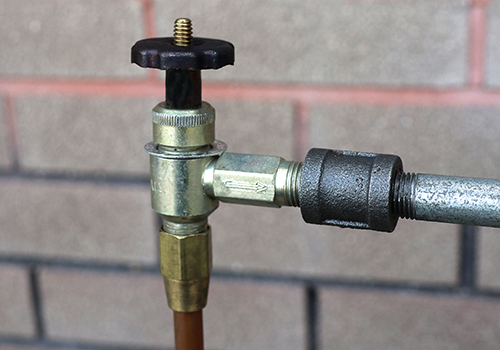

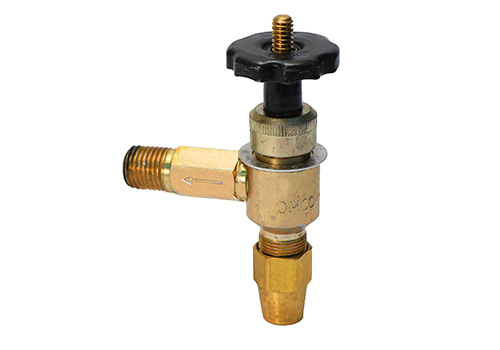

81500 Fusible Angle Valve

  • B104F Fusible Angle Valve
  • 3/8" O.D. Compression x 1/4" MPT
  • 1 1/2" Long
  • Construction: Brass

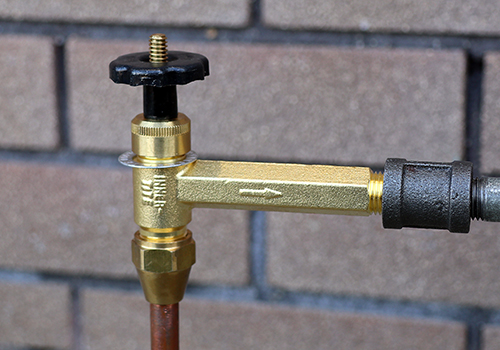

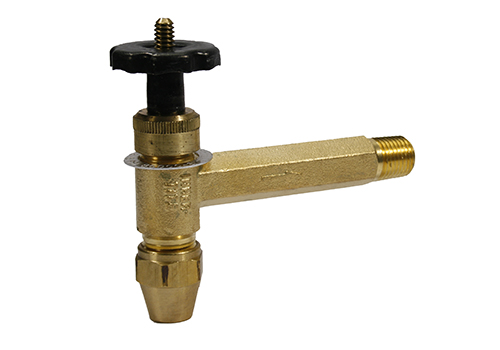

R86000 Fusible Angle Valve

  • B104CFXL Fusible Angle Valve
  • 3/8" O.D. Flare x 1/4" MPT
  • 3" Long
  • Construction: Brass

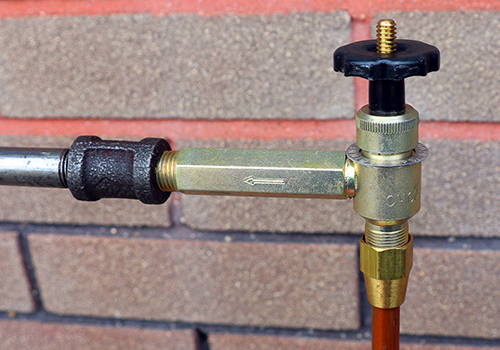

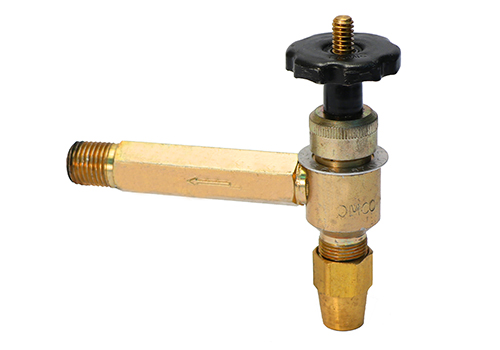

87000 Fusible Angle Valve

  • B104FXL Fusible Angle Valve
  • 3/8" O.D. Compression x 1/4" MPT
  • 3" Long
  • Construction: Brass

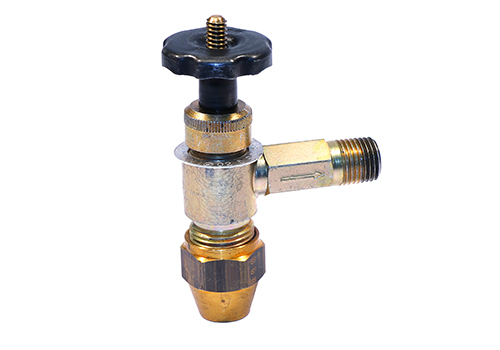

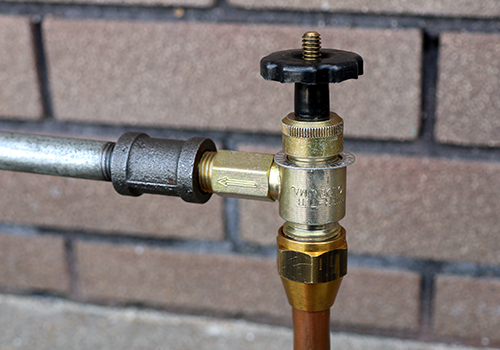

81300B Fusible Angle Valve

  • B204CF Fusible Angle Valve
  • 1/2" O.D. Flare x 1/4" MPT
  • 1 1/2" Long
  • Construction: Brass

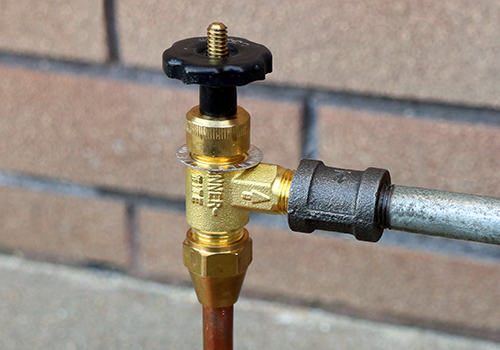

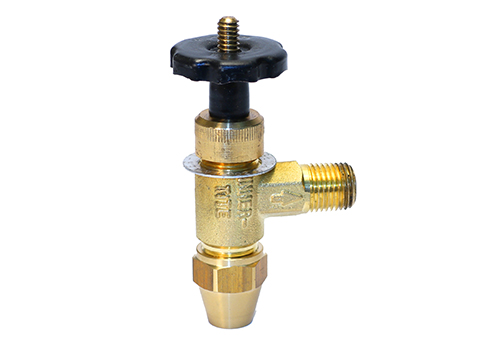

R82000 Fusible Angle Valve

  • B104CFS Fusible Angle Valve
  • 3/8" O.D. Flare x 1/4" MPT
  • 1" Long
  • Construction: Brass

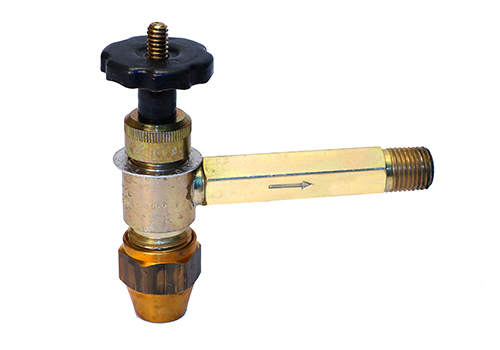

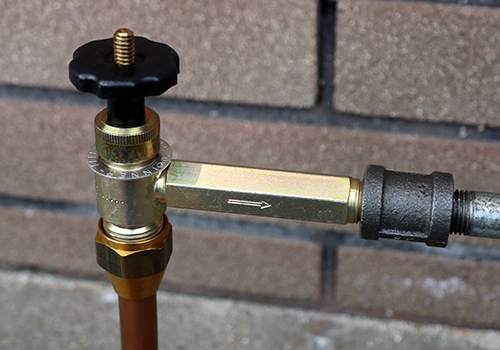

86100 Fusible Angle Valve

  • B204CFX Fusible Angle Valve
  • 1/2" O.D. Flare x 1/4" MPT
  • 3" Long
  • Construction: Brass


Typical Installation Diagram of Inner-Tite OMCO Safety Devices
